EasyNmeaCoder Unit Tests

As documented in Implementation Level, EasyNmeaCoder provides APIs for decoding NMEA 0183 supported sentences, specifically EasyNmeaCoder::decode(). This member function takes a NMEA 0183 sentence as a string and returns a std::shared_ptr to a NMEA0183Data, which NMEA0183DataKind field can be used to cast it into the appropriate NMEA 0183 data structure. This set of tests target the EasyNmeaCoder::decode() function, passing different sentences and checking the return against expected outputs.

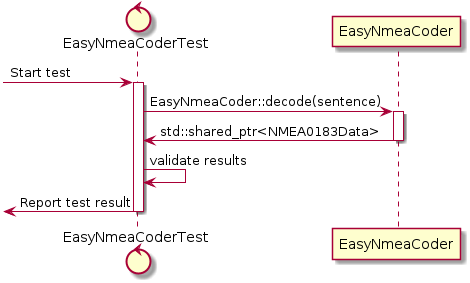

@startuml
hide empty members

control EasyNmeaCoderTest
participant EasyNmeaCoder

[-> EasyNmeaCoderTest : Start test
activate EasyNmeaCoderTest
EasyNmeaCoderTest -> EasyNmeaCoder : EasyNmeaCoder::decode(sentence)

activate EasyNmeaCoder
EasyNmeaCoder -> EasyNmeaCoderTest : std::shared_ptr<NMEA0183Data>
deactivate EasyNmeaCoder

EasyNmeaCoderTest -> EasyNmeaCoderTest : validate results
[<- EasyNmeaCoderTest: Report test result
deactivate EasyNmeaCoderTest

@enduml

decode()

  1. decodeGPGGAValidNE

  2. decodeGPGGAValidNW

  3. decodeGPGGAValidSE

  4. decodeGPGGAValidSW

  5. decodeGPGGAValidNoAgeOfDiffGPS

  6. decodeGPGGAValidEmptyAgeOfDiffGPSNoDiffRefStation

  7. decodeGPGGAValidNoDiffRefStation

  8. decodeGPGGAValidNoOptionals

  9. decodeGPGGAInvalidTime

  10. decodeGPGGAInvalidLatitudeLength

  11. decodeGPGGAInvalidLatitudeDegrees

  12. decodeGPGGAInvalidLatitudeMinutes

  13. decodeGPGGAInvalidLongitudeLength

  14. decodeGPGGAInvalidLongitudeDegrees

  15. decodeGPGGAInvalidLongitudeMinutes

  16. decodeGPGGAInvalidAltitudeUnits

  17. decodeGPGGAInvalidHeightUnits

  18. decodeGPGGAInvalidChecksum

  19. decodeGPGGANoTime

  20. decodeGPGGANoLatitude

  21. decodeGPGGANoLongitude

  22. decodeGPGGANoFix

  23. decodeGPGGANoNumberOfSatellites

  24. decodeGPGGANoHDOP

  25. decodeGPGGANoAltitude

  26. decodeGPGGANoHeight

  27. decodeGPGGANoChecksum

  28. decodeInvalidSentenceID

  29. decodeUnsupportedSentence

  30. decodeEmptySentence

  31. decodeOnlyChecksumSentence

  32. decodeOnlyAstheriscSentence
